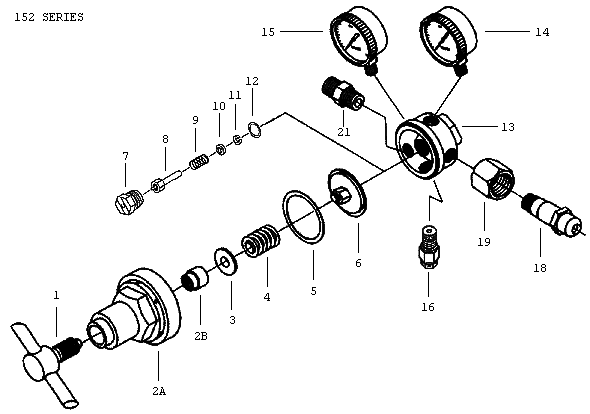

Ref. | Description | Part Number | Fits: |
1 | Adjusting Screw | R130-01-01 | ALL |
5 | Slip Ring | R130-08 | ALL |
6 | Diaphragm Assembly | R130-82A | ALL |
7 | Nozzle | R130-30 | LPG Acetylene |
7 | Nozzle | R110-30 | Oxygen Inert Gas Air Carbon Dioxide Argon AR-CO2 |
8 | Seat Assembly | R120-83 | Oxygen Inert Gas Air Carbon Dioxide Argon AR-CO2 |
8 | Seat Assembly | R130-83 | LPG Acetylene |
9 | Valve Spring | R110-35 | ALL |
10 | Gland | R110-36 | ALL |
11 | Friction Washer | R110-37 | ALL |
12 | Gasket | R110-38 | ALL |
14 | High Pressure Gauge | WG-2x400 | 152Y-15 152F-80 |
14 | High Pressure Gauge | WG-2x4000 | 152X-80 152IN-125 152Q-125 152AR-100 152CD-100 |
15 | Low Pressure Gauge | WG-2x30 | 152Y-15 |
15 | Low Pressure Gauge | WG-2x100 | 152F-80 152X-80 |
16 | Outlet Connection | ||
18 | Inlet Nipple | ||
19 | Inlet Nut | ||
21 | Relief Valve | R140-87 | 152X-80 152AR-100 152CD-100 |
21 | Relief Valve | R160-87 | 152IN-125 152Q-125 |
Model Information
|
||||
Gas Service | Model Number | Max. Delivery Pressure (PSI) |
Inlet Connection |
Outlet Connection |
Oxygen | 152X-80 | 4-80 | CGA540 | 9/16"-18RH(M) |
Acetylene | 152Y-15 152Y-15-3 152Y-15-5 |
2-15 2-15 2-15 |
CGA510 CGA300 CGA520 |
9/16"-18LH(M) 9/16"-18LH(M) 9/16"-18LH(M) |
Inert Gas (Ar,He,N2) |
152IN-125 | 5-125 | CGA580 | 5/8"-18RH(M) |
Air | 152Q-125 | 5-125 | CGA346 | 9/16"-18RH(M) |
Argon (Ar/CO2) |
152AR-100 | 0-100(SCFH) | CGA580 | 5/8"-18RH(F) |
Carbon Dioxide |
152CD-100 | 0-100(SCFH) | CGA320 | 5/8"-18RH(F) |
