BATHROOM PARTITIONS
Partitions ship direct from the factory with a 4 to 5 week lead time on standard baked enamel steel colors - almond and light grey. Other colors are availible with an approximate lead time of 5 weeks. The company also manufactures plastic laminate, stainless steel and solid plastic partitions. For prices on whole bathrooms, please fax us a sketch with room dimensions and toilet/urinal centerline dimensions. In addition, we will gladly quote your remodel and ADA upgrades.

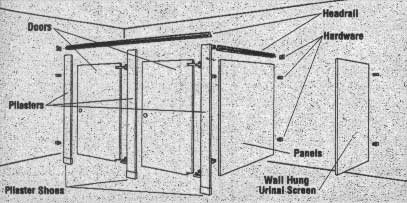

Compartments
- baked enamel steel
- floor mount
- overhead braced
- includes mounting hardware and headrail
- listed as compartments in a corner
-------- ------ ----------
1870000 ALMOND 36" x 57" x 58"
1870002 LIGHT GREY 36" x 57" x 58"
1870005 ALMOND 60" x 60" x 58"
1870008 LIGHT GREY 60" x 60" x 58"
1870010 ALMOND 72" x 57" x 58"
1870012 LIGHT GREY 72" x 57" x 58"
Urinal Screens
- baked enamel steel
- wall hung
- includes mounting hardware
-------- ------ ------
1870290 ALMOND 18" x 42"
1870292 LIGHT GREY 18" x 42"
1870295 ALMOND 24" x 42"
1870298 LIGHT GREY 24" x 42"
1870320 ALMOND HARDWARE PACKAGE
1870322 LIGHT GREY HARDWARE PACKAGE
Doors
- baked enamel steel
- includes: hardware, door latch, top and bottom hinges and coat hook
-------- ------ ------
1870030 ALMOND 24" x 58"
1870032 LIGHT GREY 24" x 58"
1870035 ALMOND 26" x 58"
1870038 LIGHT GREY 26" x 58"
1870040 ALMOND 34" x 58"
1870042 LIGHT GREY 34" x 58"
1870045 ALMOND 36" x 58"
1870048 LIGHT GREY 36" x 58"
Panels
- baked enamel steel
-------- ------ ------
1870070 ALMOND 48" x 58"
1870072 LIGHT GREY 48" x 58"
1870075 ALMOND 55" x 58"
1870078 LIGHT GREY 55" x 58"
1870080 ALMOND 58" x 58"
1870082 LIGHT GREY 58" x 58"
1870085 ALMOND 60" x 58"
1870088 LIGHT GREY 60" x 58"
1870090 ALMOND 70" x 58"
1870092 LIGHT GREY 70" x 58"
HeadRail
- aluminum
- order larger size and cut to length
-------- ------
1870230 60"
1870235 75"
1870240 98"
1870245 120"
Pilasters
- baked enamel steel
- Pilaster shoe and floor hadware included
- 82" high x 1-1/4" thick
- see below to order wall hardware separatley
-------- ------ ------
1870120 ALMOND 3"
1870122 LIGHT GREY 3"
1870125 ALMOND 4"
1870128 LIGHT GREY 4"
1870130 ALMOND 5"
1870132 LIGHT GREY 5"
1870135 ALMOND 6"
1870138 LIGHT GREY 6"
1870140 ALMOND 7"
1870142 LIGHT GREY 7"
1870145 ALMOND 8"
1870148 LIGHT GREY 8"
1870150 ALMOND 10"
1870152 LIGHT GREY 10"
1870155 ALMOND 12"
1870158 LIGHT GREY 12"
1870160 ALMOND 18"
1870162 LIGHT GREY 18"
1870170 ALMOND 24"
1870172 LIGHT GREY 24"
Hardware Packages
- for Pilasters and Headrails
- complete kits with all brackets and fasteners
- for steel units
-------- -----------
1870250 Attaches Wall Pilaster to Wall & Floor
1870255 Attaches Panel to Wall & Middle Pilaster
1870260 Attaches Panel & Headrail to Wall & End Pilaster
1870330 Standard Door Kit
1870335 Handicap Door Kit
1870340 Door Pull Only
